SEAT  FRONT SEAT ASSEMBLY  INSTALLATION


CAUTION / NOTICE / HINT

CAUTION:

Wear protective gloves. Sharp areas on the parts may injure your hands.


HINT:
·

Use the same procedure for the RH and LH sides.

·

The following procedure is for the RH side.



PROCEDURE

Hide 1.INSTALL FRONT SEAT ASSEMBLY

a.

Place the front seat assembly in the cabin.

NOTICE:

Be careful not to damage the vehicle body.



b.

Connect each connector and engage each clamp under the front seat assembly.


c.

Temporarily install the front seat assembly with the 4 bolts.


d.

Lift up the seat track adjusting handle and move the front seat assembly to the rearmost position.


e.

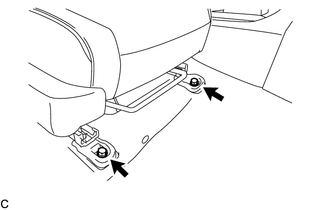

B358823
2.375,0.99 2.604,1.26 0.229,0.271 10 false 1 1.385,1.802 1.615,2.073 0.229,0.271 10 false 2

Tighten the 2 bolts on the front side of the front seat assembly.

Torque:
37 N*m (377 kgf*cm, 27 ft.*lbf)

NOTICE:

Tighten the bolts in the order shown in the illustration.



f.

Lift up the seat track adjusting handle and move the front seat assembly to the foremost position.


g.

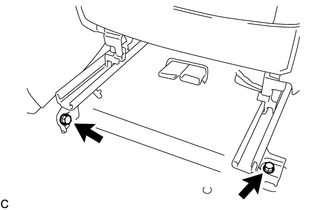

B358822
2.365,1.979 2.615,2.177 0.25,0.198 10 false 2 1.104,1.406 1.344,1.625 0.24,0.219 10 false 1

Tighten the 2 bolts on the rear side of the front seat assembly.

Torque:
37 N*m (377 kgf*cm, 27 ft.*lbf)

NOTICE:

Tighten the bolts in the order shown in the illustration.



Hide 2.INSPECT SEAT SLIDE ADJUSTER LOCK

a.

While performing sliding operation of the front seat assembly, check that the left and right adjusters move together smoothly and lock simultaneously. If the seat adjusters do not lock simultaneously, loosen the front seat assembly installation bolts and adjust the adjuster position.


Hide 72137G 3.INSTALL OUTER SEAT TRACK COVER

a.

Lift up the seat track adjusting handle and move the front seat assembly to the foremost position.


b.

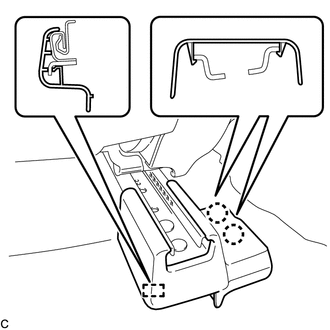

B358820

Engage the 2 claws and guide to install the outer seat track cover.


Hide 72157A 4.INSTALL INNER SEAT TRACK BRACKET COVER

a.

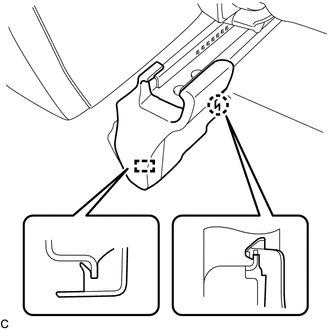

B358821

Engage the claw and guide to install the inner seat track bracket cover.


Hide 71910A 5.INSTALL FRONT SEAT HEADREST ASSEMBLY

a.

Install the front seat headrest assembly to the front seat assembly.
