ALIGNMENT / HANDLING DIAGNOSIS FRONT WHEEL ALIGNMENT ADJUSTMENT

PROCEDURE

Hide Display 1.INSPECT TIRES

Click hereSuspension>TIRE / WHEEL>TIRE AND WHEEL SYSTEM>INSPECTION

Hide Display 2.MEASURE VEHICLE HEIGHT

NOTICE:: ·

Before inspecting the wheel alignment, adjust the vehicle height to the specified value.

·

Be sure to perform measurement on a level surface.

·

If it is necessary to go under the vehicle for measurement, confirm that the parking brake is applied and the vehicle is secured with chocks.

·

Inspect while the vehicle is unloaded.

·

The standard value shown here is a value that is used for performing a wheel alignment and does not indicate the height of an actual vehicle.

Bounce the vehicle up and down at the corners to stabilize the suspension.

0.24,1.573 0.396,1.771 0.156,0.198 10 false A 1.51,1.521 1.667,1.719 0.156,0.198 10 false C 1.844,1.552 2,1.771 0.156,0.219 10 false B 3.229,1.521 3.396,1.75 0.167,0.229 10 false D

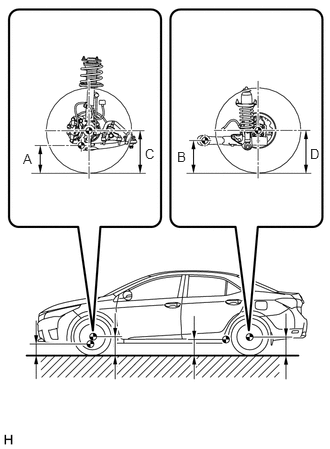

Measure the vehicle height.

Measurement Points:

A: Ground clearance of front lower suspension arm bushing set bolt center

B: Ground clearance of rear trailing arm bushing set bolt center

C: Ground clearance of front wheel center

D: Ground clearance of rear wheel center

Vehicle Height (Unloaded Vehicle):

Front C - A	Rear D - B
78 mm (3.07 in.)	30 mm (1.18 in.)

Hide Display 3.INSPECT CAMBER, CASTER AND STEERING AXIS INCLINATION

NOTICE:: Inspect while the vehicle is unloaded.

2.396,1.104 2.51,0.823 2.51,0.823 2.74,0.823 false 0.604,0.708 1.031,0.708 1.031,0.708 1.031,1.458 false 2.76,0.729 2.99,0.906 0.229,0.177 10 false *b 0.448,0.604 0.688,0.781 0.24,0.177 10 false *a

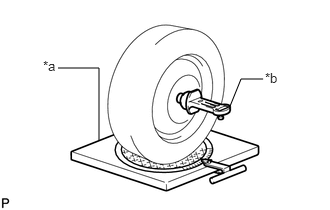

*a	Turning Radius Gauge
*b	Camber-caster-kingpin Gauge

Install a camber-caster-kingpin gauge and place the front wheels on the center of a turning radius gauge.

Inspect the camber, caster and steering axis inclination.

Camber (Unloaded Vehicle):

Camber Inclination	Right-left Difference
-0°25' +/- 0°45' (-0.42° +/- 0.75°)	0°30' (0.50°) or less

Caster (Unloaded Vehicle):

Caster Inclination	Right-left Difference
2°39' +/- 0°45' (2.65° +/- 0.75°)	0°30' (0.50°) or less

Steering Axis Inclination (Unloaded Vehicle):

Steering Axis Inclination Reference
12°11' (12.18°)

Hide Display 4.ADJUST CAMBER

NOTICE:: Inspect toe-in after the camber has been adjusted.

Remove the front wheel.

Click hereSuspension>TIRE / WHEEL>TIRE AND WHEEL>REMOVAL

w/ ABS

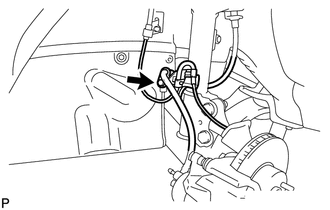

Remove the bolt and separate the front flexible hose and front speed sensor from the front shock absorber assembly.

w/o ABS

Remove the bolt and separate the front flexible hose from the front shock absorber assembly.

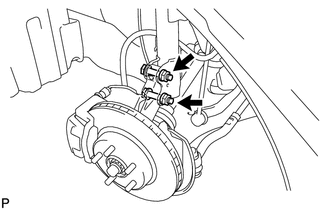

Remove the 2 nuts on the lower side of the front shock absorber assembly.

NOTICE:: Keep the bolts inserted.

Remove the top and bottom bolts one at a time and confirm that the steering knuckle can move freely in the front shock absorber assembly.

HINT:: ·

Reinstall each bolt after removing it and confirming steering knuckle movement.

·

If the steering knuckle does not move freely in the front shock absorber assembly, clean the installation surfaces of the front shock absorber assembly and the steering knuckle.

Temporarily install the 2 nuts. (Step A)

1.01,0.125 1.167,0.323 0.156,0.198 10 - 1.875,0.052 2.031,0.25 0.156,0.198 10 +

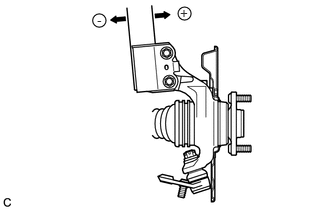

Fully push or pull the front axle hub in the direction of the required adjustment. (Step B)

Tighten the 2 nuts.

Torque:: 240 N*m (2447 kgf*cm, 177 ft.*lbf)

NOTICE:: Keep the bolts from rotating when tightening the nuts.

w/ ABS

Install the front flexible hose and front speed sensor to the front shock absorber assembly with the bolt.

Torque:: 29 N*m (296 kgf*cm, 21 ft.*lbf)

w/o ABS

Install the front flexible hose to the front shock absorber assembly with the bolt.

Torque:: 29 N*m (296 kgf*cm, 21 ft.*lbf)

Install the front wheel.

Click hereSuspension>TIRE / WHEEL>TIRE AND WHEEL>INSTALLATION

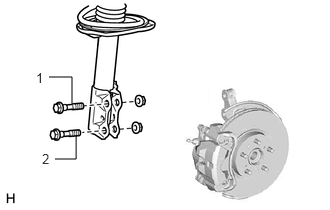

0.51,0.802 0.75,0.802 0.75,0.802 0.75,1.073 false 0.573,1.656 0.792,1.656 0.792,1.656 0.792,1.417 false 0.375,0.729 0.531,0.927 0.156,0.198 10 false 1 0.438,1.573 0.594,1.771 0.156,0.198 10 false 2

Check the camber.

If the measured value is not within the specification, calculate the required adjustment amount using the formula below.

Camber adjustment amount = center of the specified range - measured value

Check the combination of the installed bolts. Select appropriate bolts from the tables below to adjust the camber to the specified values.

HINT:: Try to adjust the camber to the center of the specified values.

To move the axle hub toward (+) in step B	To move the axle hub toward (-) in step B
Refer to table (1) (To move the axle hub toward the positive side)	Refer to table (2) (To move the axle hub toward the negative side)

The body and suspension may be damaged if the camber cannot be correctly adjusted according to the table above.

NOTICE:: Replace the nut with a new one when replacing the bolt.

Table (1) (To move the axle hub toward the positive side)

2.052,0.531 2.188,0.74 0.135,0.208 10 1 2.052,1.146 2.188,1.354 0.135,0.208 10 2 2.521,0.792 2.75,0.99 0.229,0.198 10 *c 3.219,1.406 3.448,1.594 0.229,0.188 10 *d 5.979,0.792 6.198,0.99 0.219,0.198 10 *e 5.271,0.792 5.521,0.99 0.25,0.198 10 *d 4.604,1.406 4.781,1.583 0.177,0.177 10 *f 3.917,1.406 4.125,1.615 0.208,0.208 10 *e 4.396,6.375 4.583,6.552 0.188,0.177 10 *f 5.969,1.396 6.177,1.552 0.208,0.156 10 *f 5.271,1.406 5.469,1.583 0.198,0.177 10 *f 6.656,1.396 6.833,1.552 0.177,0.156 10 *f 6.646,0.792 6.854,0.969 0.208,0.177 10 *f 2.542,2.99 2.719,3.219 0.177,0.229 10 A 2.542,4.188 2.771,4.406 0.229,0.219 10 F 2.542,3.469 2.771,3.688 0.229,0.219 10 C 2.542,3.938 2.74,4.156 0.198,0.219 10 E 2.542,3.24 2.729,3.448 0.188,0.208 10 B 2.542,3.708 2.729,3.927 0.188,0.219 10 D 3.927,3.01 4.177,3.24 0.25,0.229 10 C 5.271,3 5.51,3.229 0.24,0.229 10 E 3.229,3.01 3.406,3.219 0.177,0.208 10 B 4.604,3 4.792,3.24 0.188,0.24 10 D 3.229,2.76 3.448,2.99 0.219,0.229 10 G 3.229,3.24 3.406,3.448 0.177,0.208 10 C 3.229,3.708 3.448,3.938 0.219,0.229 10 E 3.229,3.469 3.427,3.698 0.198,0.229 10 D 3.229,3.938 3.427,4.167 0.198,0.229 10 F 3.927,2.51 4.115,2.74 0.188,0.229 10 G 3.927,2.76 4.135,2.969 0.208,0.208 10 A 3.927,3.708 4.115,3.938 0.188,0.229 10 F 3.917,3.469 4.083,3.688 0.167,0.219 10 E 3.927,3.24 4.135,3.458 0.208,0.219 10 D 4.604,2.281 4.802,2.531 0.198,0.25 10 G 6.656,1.563 6.833,1.823 0.177,0.26 10 G 5.979,1.813 6.26,2.063 0.281,0.25 10 G 5.271,2.031 5.458,2.281 0.188,0.25 10 G 6.656,1.813 6.813,2.042 0.156,0.229 10 A 6.656,2.281 6.844,2.531 0.188,0.25 10 C 6.656,2.76 6.885,3.01 0.229,0.25 10 E 6.656,2.031 6.833,2.26 0.177,0.229 10 B 6.656,2.51 6.875,2.781 0.219,0.271 10 D 5.979,2.031 6.177,2.292 0.198,0.26 10 A 5.979,2.51 6.188,2.75 0.208,0.24 10 C 5.979,2.281 6.26,2.531 0.281,0.25 10 B 5.979,2.76 6.167,2.99 0.188,0.229 10 D 5.979,3 6.115,3.208 0.135,0.208 10 F 5.271,3.24 5.49,3.448 0.219,0.208 10 F 5.271,2.281 5.406,2.51 0.135,0.229 10 A 5.271,2.76 5.448,2.969 0.177,0.208 10 C 5.271,2.51 5.438,2.74 0.167,0.229 10 B 4.604,2.51 4.781,2.76 0.177,0.25 10 A 4.604,2.76 4.781,2.969 0.177,0.208 10 B 4.604,3.24 4.813,3.458 0.208,0.219 10 E 4.604,3.469 4.813,3.698 0.208,0.229 10 F 1.625,5.073 1.76,5.281 0.135,0.208 10 A 5.094,5.073 5.229,5.281 0.135,0.208 10 F 3.052,5.073 3.188,5.281 0.135,0.208 10 C 4.406,5.073 4.542,5.281 0.135,0.208 10 E 2.344,5.073 2.479,5.281 0.135,0.208 10 B 3.729,5.073 3.865,5.281 0.135,0.208 10 D 5.802,5.073 5.938,5.281 0.135,0.208 10 G 1.073,5.5 1.208,5.708 0.135,0.208 10 1 1.104,6.135 1.24,6.344 0.135,0.208 10 2 3.042,6.375 3.229,6.531 0.188,0.156 10 *f 3.719,6.375 3.958,6.542 0.24,0.167 10 *f 5.083,6.375 5.292,6.573 0.208,0.198 10 *f 5.094,5.75 5.292,5.917 0.198,0.167 10 *f 4.385,5.75 4.604,5.917 0.219,0.167 10 *e 2.333,6.375 2.542,6.542 0.208,0.167 10 *e 1.625,6.375 1.854,6.552 0.229,0.177 10 *d 3.719,5.75 3.927,5.938 0.208,0.188 10 *d 3.01,5.75 3.208,5.938 0.198,0.188 10 *c 1.625,5.75 1.844,5.948 0.219,0.198 10 *c 2.333,5.75 2.521,5.906 0.188,0.156 10 *c 5.802,6.365 6.021,6.563 0.219,0.198 10 *c 5.76,5.76 5.969,5.948 0.208,0.188 10 *c 0.177,1.563 2.198,1.75 2.021,0.188 10 -1°30' to -1°15' (-1.50° to -1.25°) 0.406,2.76 1.969,2.948 1.563,0.188 10 -0°15' to 0° (-0.25° to 0°) 0.208,2.51 2.156,2.729 1.948,0.219 10 -0°30' to -0°15' (-0.5° to -0.25°) 0.208,2.281 2.156,2.479 1.948,0.198 10 -0°45' to -0°30' (-0.75° to -0.5°) 0.271,2.031 2.104,2.208 1.833,0.177 10 -1°00' to -0°45' (-1° to -0.75°) 0.26,1.813 2.094,2.021 1.833,0.208 10 -1°15' to -1°00' (-1.25° to -1°) 0.354,3.938 2.01,4.115 1.656,0.177 10 1°00' to 1°15' (1° to 1.25°) 0.354,3.708 2,3.906 1.646,0.198 10 0°45' to 1°00' (0.75° to 1°) 0.302,3.469 2.073,3.646 1.771,0.177 10 0°30' to 0°45' (0.5° to 0.75°) 0.302,3.24 2.073,3.417 1.771,0.177 10 0°15' to 0°30' (0.25° to 0.5°) 0.448,3 1.917,3.198 1.469,0.198 10 0° to 0°15' (0° to 0.25°) 0.302,4.188 2.073,4.365 1.771,0.177 10 1°15' to 1°30' (1.25° to 1.5°) 2.542,1.406 2.76,1.604 0.219,0.198 10 *c 3.219,0.792 3.448,0.969 0.229,0.177 10 *c 3.917,0.792 4.135,1.01 0.219,0.219 10 *c 4.604,0.792 4.823,1.01 0.219,0.219 10 *c 5.979,3 6.24,3.24 0.26,0.24 10 F 1.156,0.625 1.333,0.792 0.177,0.167 10 *a 0.625,1.115 0.802,1.281 0.177,0.167 10 *b 0.875,4.792 1.198,5.021 0.323,0.229 12 *B 0.063,0.135 0.333,0.333 0.271,0.198 12 *A

*A	Table (1) (To move the axle hub toward the positive side)	*B	Selected Bolt Combination
*a	Installed Bolt	*b	Adjusting Value
*c	Standard Bolt	*d	90105-17009
*e	90105-17010	*f	90105-17011

ii.

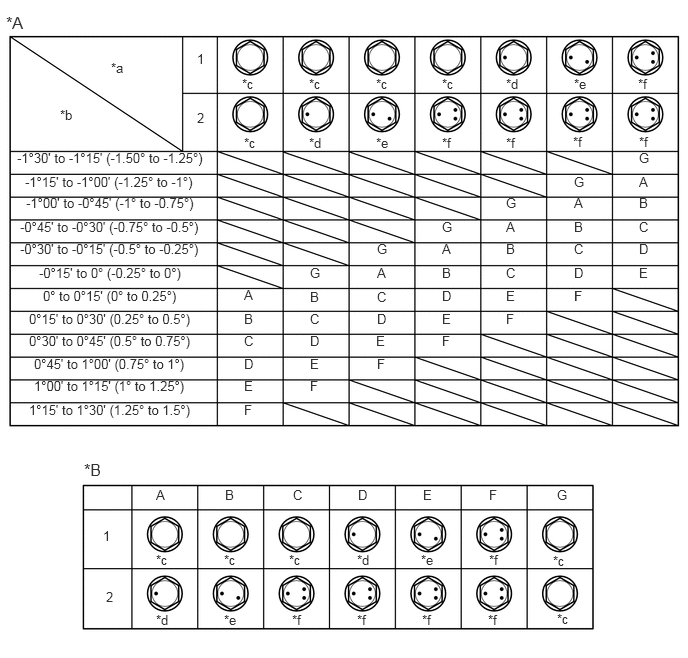

Table (2) (To move the axle hub toward the negative side)

2.052,0.531 2.188,0.74 0.135,0.208 10 1 2.052,1.146 2.188,1.354 0.135,0.208 10 2 1.635,5.052 1.771,5.26 0.135,0.208 10 A 5.094,5.052 5.229,5.26 0.135,0.208 10 F 3.052,5.052 3.188,5.26 0.135,0.208 10 C 4.406,5.052 4.542,5.26 0.135,0.208 10 E 2.344,5.052 2.479,5.26 0.135,0.208 10 B 3.729,5.052 3.865,5.26 0.135,0.208 10 D 5.802,5.052 5.938,5.26 0.135,0.208 10 G 1.073,5.5 1.208,5.708 0.135,0.208 10 1 1.104,6.135 1.24,6.344 0.135,0.208 10 2 0.177,1.563 2.198,1.75 2.021,0.188 10 -1°30' to -1°15' (-1.50° to -1.25°) 0.406,2.76 1.969,2.948 1.563,0.188 10 -0°15' to 0° (-0.25° to 0°) 0.208,2.521 2.156,2.74 1.948,0.219 10 -0°30' to -0°15' (-0.5° to -0.25°) 0.208,2.281 2.156,2.479 1.948,0.198 10 -0°45' to -0°30' (-0.75° to -0.5°) 0.271,2.031 2.104,2.208 1.833,0.177 10 -1°00' to -0°45' (-1° to -0.75°) 0.26,1.813 2.094,2.021 1.833,0.208 10 -1°15' to -1°00' (-1.25° to -1°) 0.354,3.938 2.01,4.115 1.656,0.177 10 1°00' to 1°15' (1° to 1.25°) 0.354,3.708 2,3.906 1.646,0.198 10 0°45' to 1°00' (0.75° to 1°) 0.302,3.469 2.073,3.646 1.771,0.177 10 0°30' to 0°45' (0.5° to 0.75°) 0.302,3.24 2.073,3.417 1.771,0.177 10 0°15' to 0°30' (0.25° to 0.5°) 0.448,3 1.917,3.198 1.469,0.198 10 0° to 0°15' (0° to 0.25°) 0.302,4.188 2.073,4.365 1.771,0.177 10 1°15' to 1°30' (1.25° to 1.5°) 1.156,0.625 1.333,0.792 0.177,0.167 10 *a 0.625,1.115 0.802,1.281 0.177,0.167 10 *b 0.875,4.792 1.167,5.021 0.292,0.229 12 *B 0.063,0.135 0.417,0.354 0.354,0.219 12 *A 5.292,2.76 5.427,2.969 0.135,0.208 10 E 5.292,3.708 5.427,3.917 0.135,0.208 10 G 5.292,2.521 5.427,2.729 0.135,0.208 10 F 5.292,3.469 5.427,3.677 0.135,0.208 10 A 5.292,3 5.427,3.208 0.135,0.208 10 C 5.292,3.24 5.427,3.448 0.135,0.208 10 B 2.542,2.76 2.677,2.969 0.135,0.208 10 A 2.542,1.563 2.677,1.771 0.135,0.208 10 F 2.542,2.281 2.677,2.49 0.135,0.208 10 C 2.542,1.813 2.677,2.021 0.135,0.208 10 E 2.542,2.521 2.677,2.729 0.135,0.208 10 B 2.542,2.031 2.677,2.24 0.135,0.208 10 D 3.229,2.76 3.365,2.969 0.135,0.208 10 B 3.229,3 3.365,3.208 0.135,0.208 10 G 3.229,2.521 3.365,2.729 0.135,0.208 10 C 3.229,2.031 3.365,2.24 0.135,0.208 10 E 3.229,2.281 3.365,2.49 0.135,0.208 10 D 3.229,1.813 3.375,2.021 0.146,0.208 10 F 3.927,2.76 4.063,2.969 0.135,0.208 10 C 3.927,3.24 4.063,3.448 0.135,0.208 10 G 3.927,3 4.063,3.208 0.135,0.208 10 A 3.927,2.031 4.063,2.24 0.135,0.208 10 F 3.927,2.281 4.063,2.49 0.135,0.208 10 E 3.927,2.521 4.063,2.729 0.135,0.208 10 D 4.604,2.76 4.74,2.969 0.135,0.208 10 D 4.604,3.469 4.74,3.677 0.135,0.208 10 G 4.604,3.24 4.74,3.448 0.135,0.208 10 A 4.604,3 4.74,3.208 0.135,0.208 10 B 4.604,2.521 4.74,2.729 0.135,0.208 10 E 4.604,2.281 4.74,2.49 0.135,0.208 10 F 5.99,3.938 6.125,4.146 0.135,0.208 10 G 5.99,3.708 6.125,3.917 0.135,0.208 10 A 5.99,3.24 6.125,3.448 0.135,0.208 10 C 5.99,3.469 6.125,3.677 0.135,0.208 10 B 5.99,3 6.125,3.208 0.135,0.208 10 D 5.99,2.76 6.125,2.969 0.135,0.208 10 F 6.688,4.188 6.823,4.396 0.135,0.208 10 G 6.688,3.938 6.823,4.146 0.135,0.208 10 A 6.688,3.469 6.823,3.677 0.135,0.208 10 C 6.688,3 6.823,3.208 0.135,0.208 10 E 6.688,3.708 6.823,3.917 0.135,0.208 10 B 6.688,3.24 6.823,3.448 0.135,0.208 10 D 2.51,0.792 2.729,0.969 0.219,0.177 10 *c 3.219,1.396 3.406,1.573 0.188,0.177 10 *d 5.969,0.781 6.115,0.938 0.146,0.156 10 *e 5.271,0.792 5.469,0.979 0.198,0.188 10 *d 4.604,1.396 4.781,1.573 0.177,0.177 10 *f 3.906,1.396 4.083,1.573 0.177,0.177 10 *e 5.979,1.396 6.188,1.552 0.208,0.156 10 *f 5.281,1.396 5.479,1.573 0.198,0.177 10 *f 6.656,1.396 6.833,1.552 0.177,0.156 10 *f 6.656,0.792 6.823,0.958 0.167,0.167 10 *f 2.51,1.396 2.688,1.573 0.177,0.177 10 *c 3.219,0.792 3.396,0.948 0.177,0.156 10 *c 3.927,0.792 4.115,0.979 0.188,0.188 10 *c 4.604,0.792 4.781,0.958 0.177,0.167 10 *c 4.385,6.375 4.531,6.531 0.146,0.156 10 *f 3.01,6.375 3.198,6.531 0.188,0.156 10 *f 3.708,6.375 3.948,6.542 0.24,0.167 10 *f 5.094,6.375 5.302,6.573 0.208,0.198 10 *f 5.083,5.75 5.271,5.906 0.188,0.156 10 *f 4.375,5.75 4.573,5.906 0.198,0.156 10 *e 2.313,6.375 2.521,6.542 0.208,0.167 10 *e 1.625,6.375 1.771,6.531 0.146,0.156 10 *d 3.688,5.75 3.875,5.938 0.188,0.188 10 *d 3.01,5.75 3.208,5.938 0.198,0.188 10 *c 1.625,5.74 1.802,5.927 0.177,0.188 10 *c 2.323,5.75 2.5,5.906 0.177,0.156 10 *c 5.781,6.375 5.969,6.542 0.188,0.167 10 *c 5.771,5.75 5.979,5.938 0.208,0.188 10 *c

*A	Table (2) (To move the axle hub toward the negative side)	*B	Selected Bolt Combination
*a	Installed Bolt	*b	Adjusting Value
*c	Standard Bolt	*d	90105-17009
*e	90105-17010	*f	90105-17011

If the camber was out of adjustment in the previous step, perform the adjust camber steps mentioned above. In step A, replace the existing bolts with the selected bolts.

HINT:: Replace one bolt at a time when replacing both bolts.

Hide Display 5.INSPECT TOE-IN

NOTICE:: Inspect while the vehicle is unloaded.

Bounce the vehicle up and down at the corners to stabilize the suspension.

Release the parking brake and move the shift lever to N (for CVT and Automatic Transaxle).

Release the parking brake and move the shift lever to neutral (for Manual Transaxle).

Push the vehicle straight ahead approximately 5 m (16.4 ft.). (Step C)

0.833,0.583 0.833,1.115 false 1.365,0.583 1.365,0.99 1.365,0.99 0.833,0.99 false 2.521,1.333 2.521,1.667 false 0.74,1.135 0.917,1.302 0.177,0.167 10 *a 2.427,1.698 2.604,1.854 0.177,0.156 10 *b

*a	Tread Center Mark
*b	Dimension B
	Front of the Vehicle

Put tread center marks on the rearmost points of the front wheels and measure the distance between the marks (dimension B).

Slowly push the vehicle straight ahead to cause the front wheels to rotate 180°. Use the front tire valve as a reference point.

HINT:: Do not allow the wheels to rotate more than 180°. If the wheels rotate more than 180°, perform the procedure from step C again.

0.646,1.271 0.646,1.635 false 1.917,0.542 2.052,0.698 0.135,0.156 10 C 3.073,0.552 3.208,0.708 0.135,0.156 10 D 2.5,0.719 2.635,0.875 0.135,0.156 10 A 2.51,1.542 2.646,1.698 0.135,0.156 10 B 0.563,1.656 0.74,1.813 0.177,0.156 10 *a

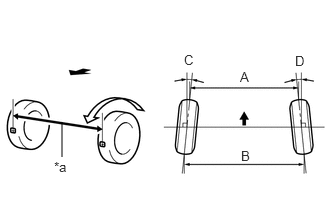

*a	Dimension A
	Front of the Vehicle

Measure the distance between the tread center marks on the front of the wheels (dimension A).

Toe-in (Unloaded Vehicle):

Specified Condition
C + D: 0°00' +/- 0°12' (0.00° +/- 0.20°)
B - A: 0 +/- 2.0 mm (0 +/- 0.0787 in.)

HINT:: Measure "B - A" only when "C + D" cannot be measured.

If the toe-in is not within the specified range, adjust it at the steering rack ends.

Hide Display 6.ADJUST TOE-IN

2.052,1.51 2.302,1.708 0.25,0.198 10 true *a

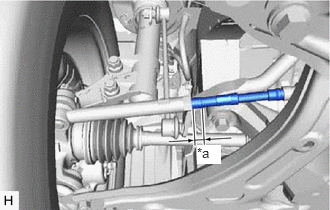

*a	Thread Length

Make sure that the thread length of the right and left steering rack ends are approximately the same.

Standard Difference:: 1.5 mm (0.0591 in.) or less

Remove the steering rack boot clips.

Loosen the tie rod end sub-assembly lock nuts.

Adjust the steering rack ends if the difference in thread length between the right and left steering rack ends is not within the specified range.

If the toe-in measurement is greater than the specified range (too much toe-out), extend the shorter rack end so that the length difference is within the specified range.

ii.

If the toe-in measurement is less than the specified range (too much toe-in), shorten the longer rack end so that the length difference is within the specified range.

iii.

Measure the toe-in.

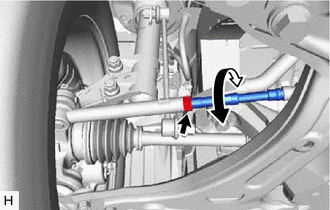

Turn the right and left steering rack ends by an equal amount to adjust the toe-in.

Make sure that the thread length of the right and left steering rack ends are the same.

Tighten the tie rod end sub-assembly lock nuts.

Torque:: 74 N*m (755 kgf*cm, 55 ft.*lbf)

Place the steering rack boots on the seats and install the steering rack boot clips.

HINT:: Make sure that the steering rack boots are not twisted.

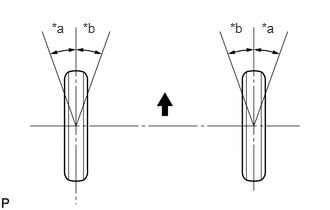

Hide Display 7.INSPECT WHEEL ANGLE

0.863,0.204 1.036,0.381 0.173,0.177 10 *b 0.538,0.204 0.713,0.381 0.176,0.177 10 *a 2.397,0.204 2.57,0.381 0.173,0.177 10 *b 2.725,0.204 2.901,0.381 0.176,0.177 10 *a

*a	Inside
*b	Outside
	Front of the Vehicle

Put tread center marks on the rearmost points of a turning radius gauge.

Turn the steering wheel fully to the left and right and measure the turning angle.

NOTICE:: Inspect while the vehicle is unloaded.

Wheel Turning Angle (Unloaded Vehicle):

Inside Wheel	Outside Wheel
38°31' +/- 2°00' (38.52° +/- 2°)	33°05' (33.08°)

If the right and left inside wheel angles differ from the specified value, check and adjust the right and left steering rack end lengths.

Hide Display 8. ALIGN FRONT WHEELS FACING STRAIGHT AHEAD
